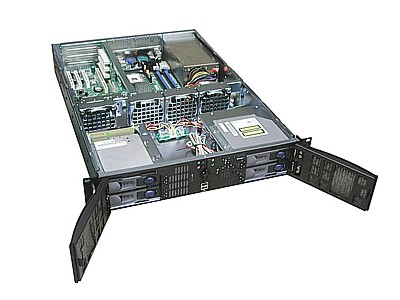

GHI-249 GUANGHSING
Features :
19" Rackmount Chassis 2U
EATX (12" x 13")
Depth 570mm
4x 3.5" Swappable Trays, 1x Slim FDD, 1x Slim CD-ROM
|
|
|
Description
Construction : Heavy Duty Cold Rolled Electroplated Steel
Color : Black (Standard), Beige or Custom
Mainboard Size : EATX (12" x 13")
CPU Type : Pentium 4, Dual Xeon, Athlon 64, Dual Opteron
Expansion Slots : 3x Horizontal or 7x Low Profile PCI Slots
Drive Bays(Open) : 4x 3.5" Swappable Trays, 1x Slim FDD, 1x Slim
Power Supply(optional) : 2U Single up to 600W or 2U Redundant up to 500W ATX P/S(Rear
Riser Card : Please Check Page 204-206 For Optional 2U Riser Card
Drive Interface : SATA or SAS
Thermal Management Cards : GHA-CO04
|
Cooling Fan (Standard) : 4x (80mm = 42.5CFM ea.) Fans
Air Filter : Inside Front Door (Washable)
Front USB : 2x USB Ports
Indicators : LEDs for Power ON/OFF, HDD Power/Access
Front Controls : LEDs for Power ON/OFF, HDD Power/Access
Front Doors : Two Horizontal Doors With 1 Keylock
Humidity : 5% - 95% Non-condensing
|
|
| Additional Information
|
Packaging Information
Carton Width : 588 mm
Carton Height : 255 mm
Carton Depth : 825 mm
Width : 483 mm
Height : 88 mm
Depth : 650 mm
Net Weight : 16.1 kgs
Pack CuFt : 4.4
|
|
|
|
|
