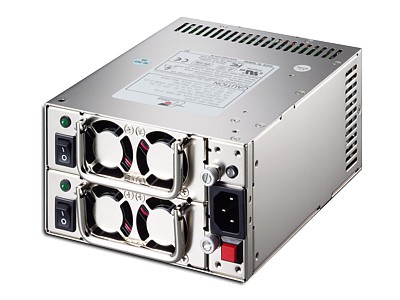

MRT-6320P2
|
|
Description
Construction : Aluminium Alloy Modules,Metal Frame
Color : Metal
Intel Form Factor : EPS12V
Output Wattage : 320W
Input Voltage : 90-264VAC
Frequency : 47-63Hz
Input Current : 3A - 6A
Inrush Current : 60A - 80A
PFC : Active
Efficiency : 63% Typical
Switch : ON/OFF
Indicators : LED for Power ON/OFF,Power Fail
Power Fault Alarm Signals : LED/Alarm Signal/TTL
Hot Swap : Yes
CoolingFan : 2x40mm per Module
+3v3V : 18A
+5V : 25A
+12V1 : 16A
-5V : 0,5A
-12V : 0,5A
+5Vsb : 2A
|
Motherboard Connector : 24pin +4pin
CPU connector : 8pin
4-Pin For Peripheral : 8
4-Pin For Floppy : 2
Cable Length : ATX 510mm/Peripherals800mm
Over Voltage Protection : yes
Over Current Protection : yes
Short Circuit Protection : yes
Built In EMI filter : Yes
MTBF : 100.000hrs
Hold-up Time : 16ms Minimum
Temperatur Range Operating : 0C - 40C
Temperatur Range Storage : -20C - 70C
Other Features : 2 AC-IN
Product Application : Rackmount/Server/IPC
|
|
| Additional Information
|
Packaging Information
Carton Width : 220 mm
Carton Height : 170 mm
Carton Depth : 220 mm
Width : 150 mm
Height : 86 mm
Depth : 185 mm
Net Weight : 4.30 kgs
Gross Weight : 5.30 kgs
Pack CuFt : 1.77
Carton : 1 pcs
|
|
|
|
|
