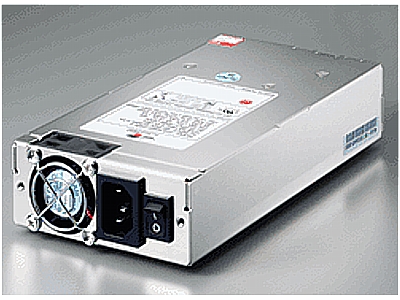

P1A-6200P ZIPPY EMACS 1U
Features :
Active PFC (full range), MEET IEC-1000-3-2 CLASS D
*12V Max. Current :12A
*TEMPERATURE RANGE: OPERATING 00C ---500C.
* HUMIDITY:OPERATING:20%-95%, NON-OPERATING:10%-95%
* REMARKS:85% IS NORMAL CONDITION AND 95% IS WITH SPECIAL COATING PROCESS
*EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B
*SAFETY: UL 1950, CSA 22.2 NO/ 950, TUV IEC 950
*Remote on/off control
*Cooling: ONE 40 mm DC Fan
*3.3V /5V Remote sensing
*Extend AC cable ( optional )
*Serial ATA optional
|
|
Description
Construction : Metal Color : Metal Intel Form Factor : ATX 12V ver. 1.3 Output Wattage : 200W Input Voltage : VOLTAGE: 90 ~ 264 Frequency : 47 - 63Hz Switch : ON / OFF CoolingFan : 1 x 40mm +3v3V : 14 +5V : 25 +12V1 : 8 -5V : 0,5 -12V : 0,5 +5Vsb : 1,5
|
Motherboard Connector : 20pin CPU connector : 4pin 4-Pin For Peripheral : 4 4-Pin For Floppy : 1 Over Voltage Protection : Yes Over Current Protection : Yes Short Circuit Protection : Yes Built In EMI filter : Yes MTBF : 100.000hrs Temperatur Range Operating : 5°C - 50°C Humidity : 10%-95%
|
|
|
|
|
|
