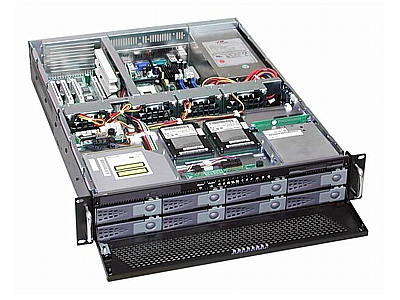

GHI-282/282V GUANGHSING
Features :
19" Storage Server Chassis 2U
Supports ATX M.B max.12"x9.6"
Depth 565mm
1xSlim CD-ROM&1xSlim FDD&8x3,5"Swappable Trays&2x2,5"HDD
Drive Interface:PATA,SATA,SCA or MultilaneSATA or SAS
|
|
|
Description
Construction : Heavy Duty Cold Rolled Electroplated Steel
Mainboard Size : 12"x9,6"
CPU Type : Dual Xeon, P4, Athlon64, Dual Opteron
Drive Bays(Open) : 1xSlim CD-ROM&1xSlim FDD&8x3,5"Swappable Tray
Drive Bays(Internal) : 2x2,5"HDD
Power Supply(optional) : 2U Single up to 510W
Riser Card : Optional 32bit/64bit /AGP/PCIe
Thermal Management Cards : GHA-CO04
|
Cooling Fan (Standard) : 4x(80mm)
Cooling Fan (Optional) : 1x80mm Blower FC-200
Front USB : 2x
Indicators : LEDs for Power ON/OFF, LAN,HDD Activity,Fan,Temp.
Front Controls : Power ON/OFF, System Reset, Buzzer Reset
Front Doors : Single Door with 2 Thumbscrews
Humidity : 5%-95% Non-Condensing
Product Application : Web server, High-End Workstation
Optional Accessories : GHA-SL26 Slide Rails
|
|
| Additional Information
|
Ordering Information
Use all benefits that a registration as a PREMIER Partner offers!
After completing the registration process you will be able to add Items to your personal Notepad and - if you wish - send your inquiry to our sales staff.
5000033 | GHI-282SX-IDE | | |
12"x13" M.B | max. 3x Horizontal ISA/PCI/AGP | black | |
5000035 | GHI-282SX-MS2 | | |
12"x13" M.B | max. 3x Horizontal ISA/PCI/AGP | black | |
5001282 | GHI-282SX-SAS | | |
12"x13" M.B | max. 3x Horizontal ISA/PCI/AGP | black | |
5000034 | GHI-282SX-SATA | | |
12"x13" M.B | max. 3x Horizontal ISA/PCI/AGP | black | |
500282 | GHI-282SX-SCA | | |
12"x13" M.B | max. 3x Horizontal ISA/PCI/AGP | black | |
5000029 | GHI-282V-IDE | 12"x13" M.B | 7x Low Profile Slots | black
5000032 | GHI-282V-MS212"x13" M.B | 7x Low Profile Slots | black |
5002282 | GHI-282V-SAS | 12"x13" M.B | 7x Low Profile Slots | black
5000030 | GHI-282V-SATA | 12"x13" M.B | 7x Low Profile Slots | black
5000031 | GHI-282V-SCA | 12"x13" M.B | 7x Low Profile Slots | black
|
|
Packaging Information
Carton Width : 588 mm
Carton Height : 255 mm
Carton Depth : 745 mm
Width : 483 mm
Height : 88 mm
Depth : 565 mm
Gross Weight : 17.50 kgs
Pack CuFt : 3.9
Pallet : 14 pcs
Carton : 1 pcs
|
| | Recommended Additionals
|
|
|
|
