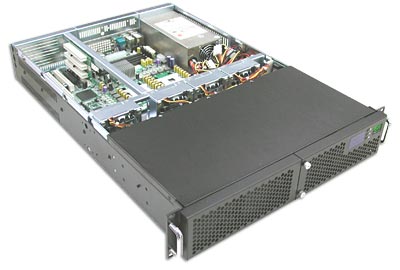

GHI-290/290V GUANGHSING
Features :
19" Rackmount Chassis 2U
Supports EATX M.B max.12"x13"
Depth 650mm
12x3,5" Swappable Trays
Drive Interface SATA,SCA,MultilaneSATA or SAS
|
|
|
Description
Construction : Heavy Duty Cold Rolled Electroplated Steel
Mainboard Size : 12"x13"
CPU Type : Dual Xeon, P4, Athlon64, Dual Opteron
Expansion Slots : 3 Horizontal Slots or 7 Low Profile
Drive Bays(Open) : 12x3,5"Swappable Trays
Power Supply(optional) : 2U Single or 2 U Redundant
Riser Card : Optional 32bit/64bit /AGP/PCIe
Thermal Management Cards : GHA-CO08
|
Cooling Fan (Standard) : 4x(80mm)
Indicators : LEDs for Power ON/OFF, LAN,HDD Activity,Fan,Temp.
Front Controls : Power ON/OFF, System Reset, Buzzer Reset
Front Doors : 2 horiz. Doors with 2x Thumbscrews
Humidity : 5%-95% Non-Condensing
Optional Accessories : GHA-SL26 Slide Rails
|
|
| Additional Information
|
Ordering Information
Use all benefits that a registration as a PREMIER Partner offers!
After completing the registration process you will be able to add Items to your personal Notepad and - if you wish - send your inquiry to our sales staff.
5000050 | GHI-290SX-MS2 | 12"x13" M.B | max. 3x Horizontal ISA/PCI/AGP | black
5002290 | GHI-290SX-SAS | 12"x13" M.B | max. 3x Horizontal ISA/PCI/AGP | black
500290 | GHI-290SX-SATA | 12"x13" M.B | max. 3x Horizontal ISA/PCI/AGP | black
5000051 | GHI-290SX-SCA | 12"x13" M.B | max. 3x Horizontal ISA/PCI/AGP | black
5000053 | GHI-290V-MS2 | 12"x13" M.B | 7x Low Profile Slots | black
5003290 | GHI-290V-SAS | 12"x13" M.B | 7x Low Profile Slots | black
5000052 | GHI-290V-SATA | 12"x13" M.B | 7x Low Profile Slots | black
5000054 | GHI-290V-SCA | 12"x13" M.B | 7x Low Profile Slots | black
5000056 | GHI-290WV-MS2 | 12"x13" M.B | 6xHorizontal Slots | black
5001290 | GHI-290WV-SAS | 6xHorizontal Slots | black |
5000055 | GHI-290WV-SATA | 12"x13" M.B | 6xHorizontal Slots | black
5000057 | GHI-290WV-SCA | 6xHorizontal Slots | black |
|
|
Packaging Information
Carton Width : 588 mm
Carton Height : 255 mm
Carton Depth : 825 mm
Width : 483 mm
Height : 88 mm
Depth : 650 mm
Gross Weight : 18.50 kgs
Pack CuFt : 4.4
Pallet : 14 pcs
Carton : 1 pcs
|
|
|
|
|
