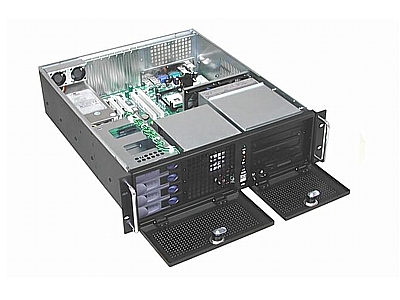

GHI-314 GUANGHSING
Features :
19" Rackmount Chassis 3U
Supports ATX M.B max.12"x10.5"
Depth 524mm
2x5.25"&4x 3.5" Swappable Trays
Drive Interface:SATA,SCA or SAS
|
|
|
Description
Construction : Heavy Duty Cold Rolled Electroplated Steel
Mainboard Size : 12"x10.5"
CPU Type : P4,Dual Xeon,Athlon64
Expansion Slots : 7 slot
Drive Bays(Open) : 2x5.25"&4x 3.5" Swappable Trays
Power Supply(optional) : 2U Single or redundant
|
Cooling Fan (Standard) : 1x120mm,2x60mm&4x40mm
Front USB : 2x
Indicators : LEDs for Power ON/OFF,HDD Activity,Fan,Temperature
Front Controls : Power ON/OFF,Momentary (Pushbutton),System&Buzzer Reset
Front Doors : 2xDoors with Thumb Twist Keylock
Humidity : 5% - 95% Non-condensing
|
|
| Additional Information
|
Ordering Information
Use all benefits that a registration as a PREMIER Partner offers!
After completing the registration process you will be able to add Items to your personal Notepad and - if you wish - send your inquiry to our sales staff.
5001314 | GHI-314SX-SATA | 12"x10.5" M.B. | without P.S. | black
5002314 | GHI-314SX-SCA | 12"x10.5"M.B. | without P.S. | black
5003314 | GHI-314SX-SAS | 12"x10.5"M.B. | without P.S. | black
|
|
Packaging Information
Carton Width : 588 mm
Carton Height : 285 mm
Carton Depth : 703 mm
Width : 483 mm
Height : 133 mm
Depth : 524 mm
Gross Weight : 15.50 kgs
Pack CuFt : 4.2
Pallet : 14 pcs
Carton : 1 pcs
|
