GHI-584 GUANGHSING
Features :

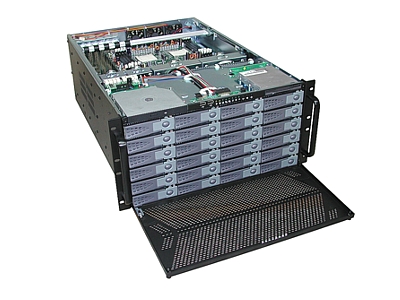

19" Storage Server Chassis 5U
The GHI-584 is a quad server board ready chassis with 24 hotswap drives
|
|
|
Description
Construction : Heavy Duty Cold Rolled Electroplated Steel
Color : Black
Mainboard Size : 13"x16"
CPU Type : P4,Athlon64,Dual Xeon,Dual Opteron,Quad Opteron
Expansion Slots : 7 slot
Drive Bays(Open) : 1xSlim CD-ROM,1xSlim FDD&24x3.5" Hot Swappabl
Drive Bays(Internal) : 2x2.5"
Power Supply(optional) : 1U redundant up to 1650W ATX
|
Cooling Fan (Standard) : 6x60mm & 2x120mm
Indicators : LEDs for Power ON/OFF,HDD Activity,LAN,Temp.,Fan
Front Controls : Power ON/OFF,System Reset,Buzzer Reset
Front Doors : Single Door with two Thumbscrews
Humidity : 5% - 95% Non-condensing
Product Application : NAS,SAN,Fileserver
|
|
| Additional Information
|
Ordering Information
Use all benefits that a registration as a PREMIER Partner offers!
After completing the registration process you will be able to add Items to your personal Notepad and - if you wish - send your inquiry to our sales staff.
5001584 | GHI-584SX-IDE | 13"x16" M.B. | without P.S. | black
5002584 | GHI-584SX-SATA | 13"x16" M.B. | without P.S. | black
5003584 | GHI-584SX-SCA | 13"x16" M.B. | without P.S. | black
5004584 | GHI-584SX-MultilaneSATA | 13"x16" M.B. | without P.S. | black
5005584 | GHI-584SX-SAS | 13"x16" M.B. | without P.S. | black
|
|
Packaging Information
Carton Width : 855 mm
Carton Height : 370 mm
Carton Depth : 610 mm
Width : 483 mm
Height : 222 mm
Depth : 650 mm
Gross Weight : 34.50 kgs
Pack CuFt : 6.8
Pallet : 6 pcs
Carton : 1 pcs
|
