GHI-691 GUANGHSING
Features :

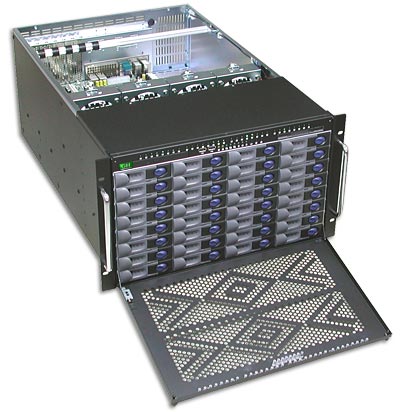

This GUANGHSING 19" Rackmount Industrial Computer Chassis - 6U provides you with 32 x 3.5 swappable trays on front and 4 swappable trays on rear side optional.
So it can offer additional 1xslim CD-ROM and 1Slim FDD on Front
It supports 13"x16" M.B.
|
|
|
Description
Construction : Heavy Duty Cold Rolled Electroplated Steel
Color : Black
Mainboard Size : ETAX M.B. (Max. to 13" x 16") with Removable Drawe
CPU Type : Dual Xeon, P4 , Athlon64 , Dual Opteron , Quad Opteron
Expansion Slots : 7 Slot
Drive Bays(Open) : 1 x Slim CD-ROM & 1 x Slim FDD & 32 x 3,5" Sw
Drive Bays(Optional) : 4 x Hot Swappable HDD on rear Side
Power Supply(optional) : 1U Redundant N+1 up to 1650W
Thermal Management Cards : GHA-CO04
|
Cooling Fan (Standard) : 2 x (120mm = 108CFM ea.) & 2 x (60mm =23.5CFM ea.) & 3 x (6
Front USB : 2
Indicators : LEDs for Power ON / OFF, LAN , HDD Activity , Fan, Temp.
Front Controls : Power ON / OFF, System Reset, Buzzer Reset
Front Doors : Single Door with 2 Thumbscrews
Humidity : 5% - 95% Non - Condensing
Product Application : Web Server, File Server, RAID S.
Optional Accessories : SL-26
|
|
| Additional Information
|
Ordering Information
Use all benefits that a registration as a PREMIER Partner offers!
After completing the registration process you will be able to add Items to your personal Notepad and - if you wish - send your inquiry to our sales staff.
5001691 GHI-691SX-IDE | 13" x 16" M.B. | without P.S. | black |
5000094 GHI-691SX-MS2 | 13" x 16" M.B. | without P.S. | black |
5002691 GHI-691SX-SAS | 13" x 16" M.B. | without P.S. | black |
5000093 GHI-691SX-SATA | 13" x 16" M.B. | without P.S. | black |
5000095 GHI-691SX-SCA | 13" x 16" M.B. | without P.S. | black |
|
|
Packaging Information
Carton Width : 610 mm
Carton Height : 418 mm
Carton Depth : 855 mm
Width : 483 mm
Height : 265 mm
Depth : 666 mm
Gross Weight : 38.3 kgs
Pack CuFt : 7.7
Pallet : 8 pcs
Carton : 1 pcs
|
